NEO SHAPER - Profile Narrow

A bright contour spotlight with advanced zoom lens optics

Variable beam angle 14-27°

Fits all known 3-phase circuit tracks

Built-in beam shaping shutters provide excellent control

Description

Neo Profile Narrow is developed for use in museums and art galleries
Every fixture can individually handle all changable variables of the light
With two sliding lenses, you can adjust the focus on the light beam

In addition to the analog and DMX series of NEO, a DALI track version is available

Neo Shaper

TECHNICAL SPECIFICATION

Material	Lamp housing of die-cast magnesium Adapter housing of PBT/PC 10 GF Anti-reflective zoom lenses
Finish	Gray (RAL 9006) Black (RAL 9005) White (RAL 9016)
System	3-phase circuit track (eg Global Trac, Erco, Zumbotel, iGuzzini, Eutrac and Hoffmeister)
Dimming control	Integrated manual dimmer 0-100% DMX via Lumenradio DMX DALI version (only for Global Trac PULSE track system or equivalent) Not compatible with mains dimmer
Protection class	IP20
	230V ~ 53/60Hz
Power consumption	27W
CRI	95
Color temperature	2700K/3000K/4000K
Beam angle	Adjustable 14-27°
Swivels	>365°
Tilts	>90°
Gobo	E-size (37.5mm)
Features	Filter holder, phase selector, lockable pan/tilt
Optional Accessories	Gobo holder, gobo patterns

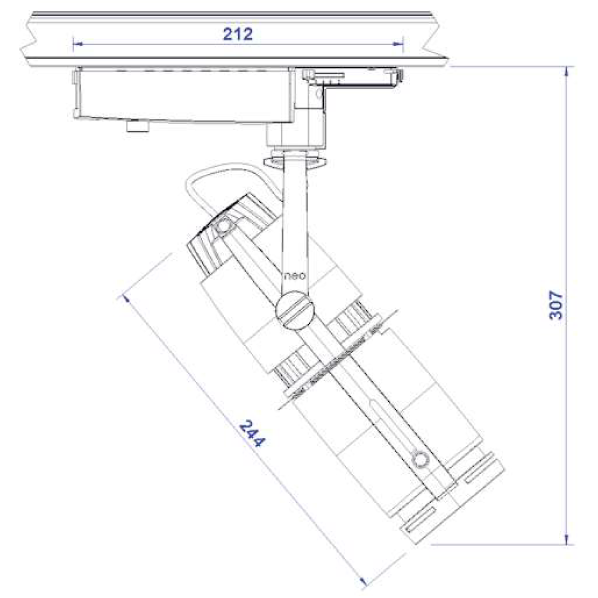

Arty Shaper Zoom diagram

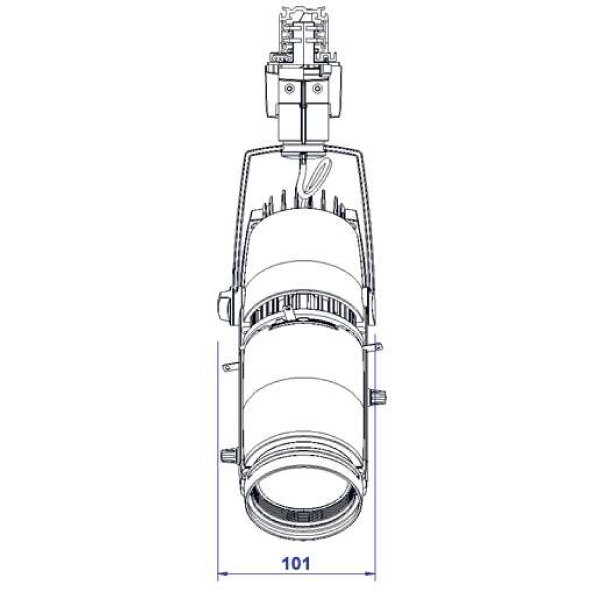

Arty Shaper Zoom diagram-width
